Obsidian Wiki Dashboard — Setup Guide

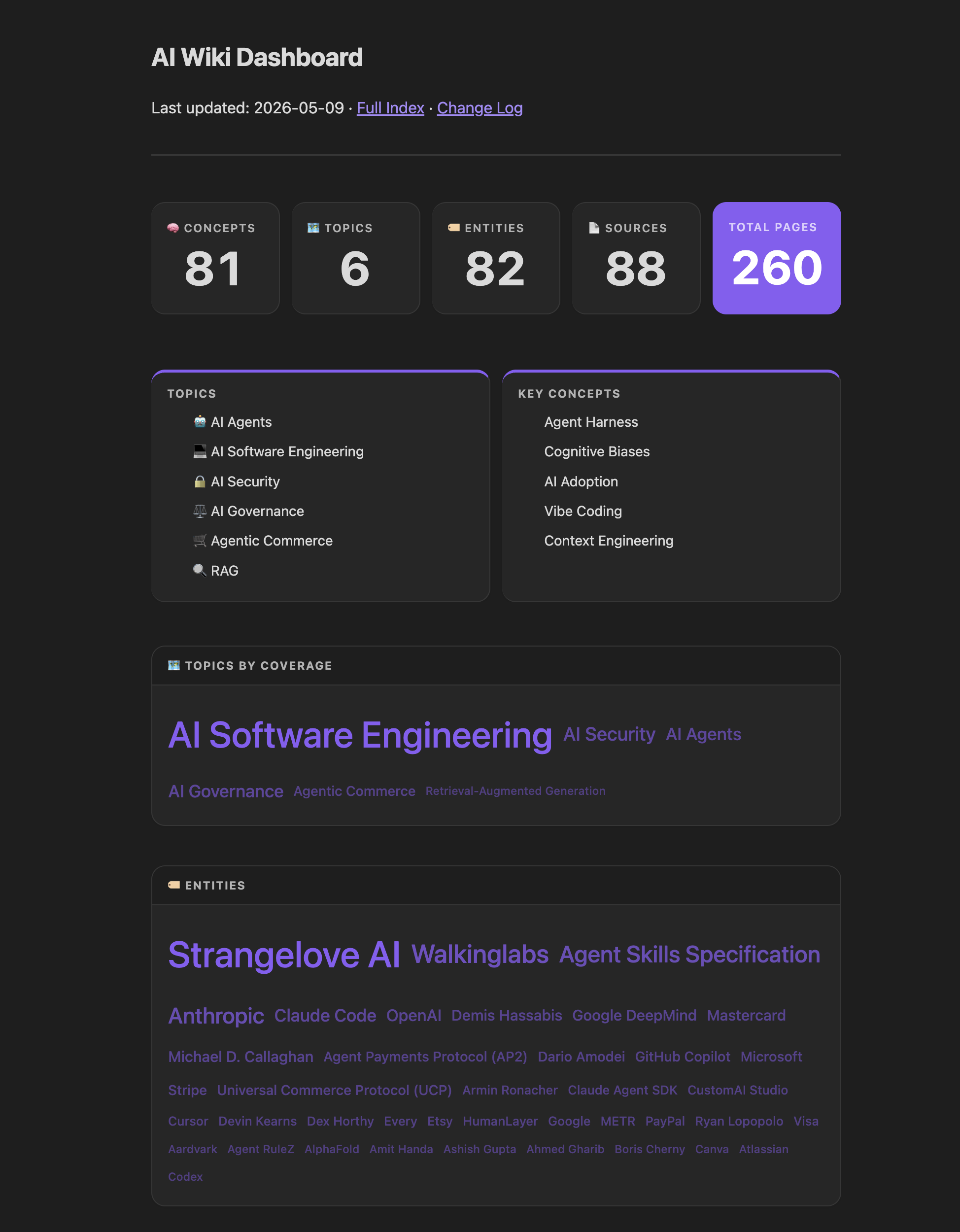

This bento-grid dashboard is a simple live overview of the wiki built from two files:

• dashboard.md — the note you open in Obsidian; contains stat cards, nav links, and DataviewJS data blocks
• .obsidian/snippets/wiki-dashboard.css — the CSS snippet that styles all dashboard components

---

Requirements

1. Dataview plugin

Install Dataview from the Obsidian Community Plugins browser.

After installing, open its settings and enable both:

• Enable JavaScript Queries — required for the dataviewjs code blocks
• Enable Inline JavaScript Queries — required for the `$= ...` expressions in the header line

Settings → Community Plugins → Dataview → toggle both options on

2. CSS snippet

1. Copy wiki-dashboard.css into your vault's .obsidian/snippets/ folder (if not present, create the snippets folder).
2. Open Settings → Appearance → CSS Snippets.
3. Click the refresh icon if the snippet doesn't appear, then toggle wiki-dashboard on.

---

How it works

dashboard.md

The note's frontmatter applies the CSS hook:

cssclasses: [dashboard]

This adds a dashboard class to the rendered note, which the CSS uses to hide the inline title and the Properties panel — keeping the view clean.

The note is structured in three layers:

Stats row — five callout cards in a horizontal grid showing live counts pulled from the wiki/ folder tree:

Card	Query
Concepts	dv.pages('"wiki/concepts"').length
Topics	dv.pages('"wiki/topics"').length
Entities	dv.pages('"wiki/entities"').length
Sources	dv.pages('"wiki/sources"').length
Total Pages (accent)	dv.pages('"wiki"').length

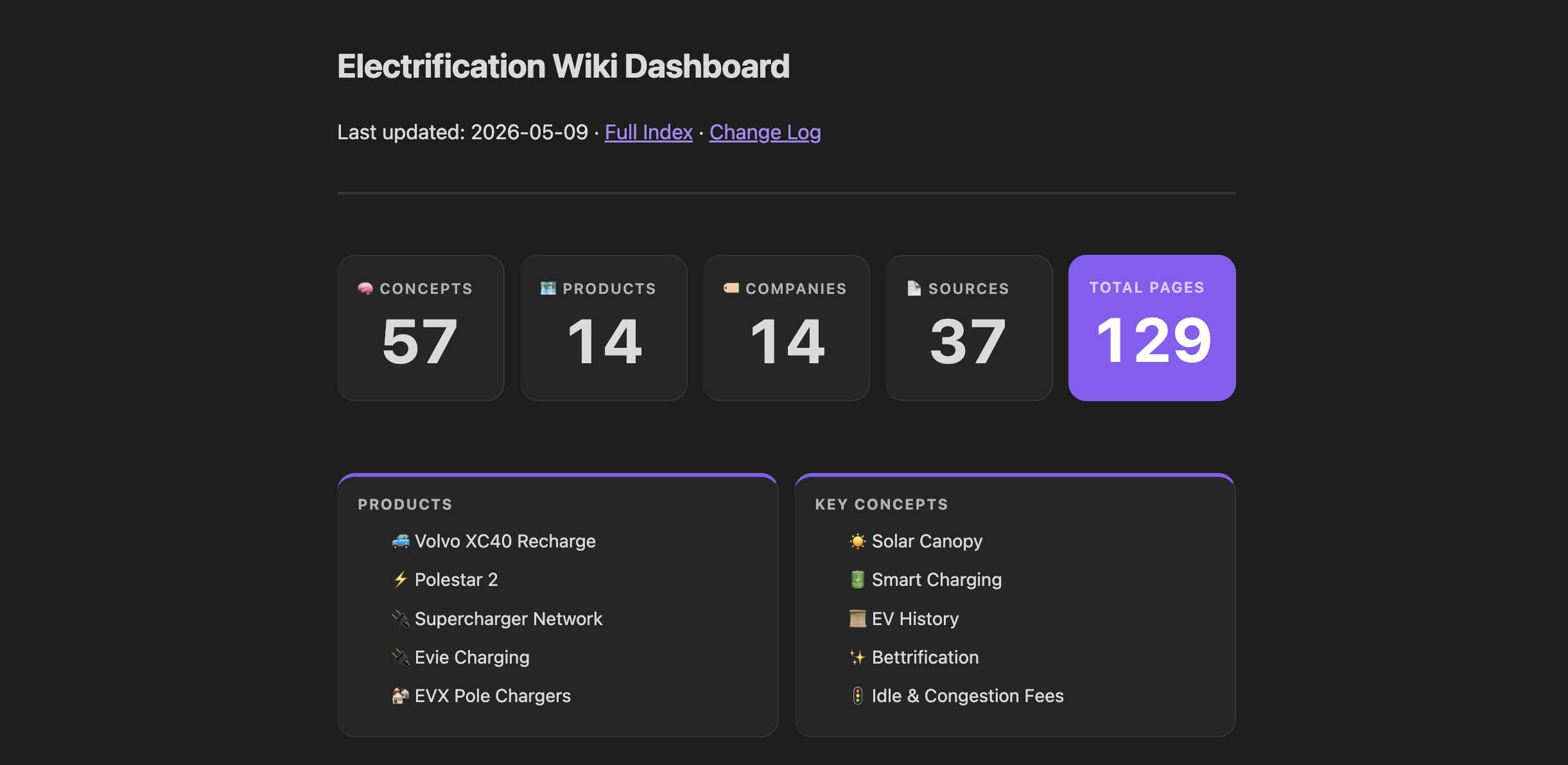

You might not have all these categories set up — feel free to edit the queries or add/remove cards as needed. In stead of concepts, topics, entities, you could track any other categories (people, articles, projects) or tags in your vault. Topics and Key Concepts in the nav row below are also just examples — customize them to fit your wiki's structure and focus.

Nav row — two side-by-side callout cards with manual links to topics and key concepts.

DataviewJS blocks — five live data blocks rendered as bento cards:

1. Topics by Coverage — word cloud sized and faded by source_count
2. Entities — same word cloud treatment, top 40 by source_count
3. Recently Updated — table of the 15 most recently modified wiki pages
4. Top Concepts by Coverage — word cloud, top 40 concepts
5. Recent Sources — table of the 20 most recently added source pages

Each DataviewJS block adds the CSS class bento-data-card to its container, which the snippet styles as a rounded card with a header stripe.

wiki-dashboard.css

The snippet defines four callout types and two DataviewJS card classes:

Selector	Purpose
[data-callout="stats"]	Transparent wrapper; turns children into a 5-column grid
[data-callout="navrow"]	Transparent wrapper; turns children into a 2-column grid
[data-callout="stat"]	Muted background stat card — label + large number
[data-callout="stat-accent"]	Accent-color stat card for the total count
[data-callout="nav"]	Navigation card with accent top border and clean link list
.bento-data-card	Container card for DataviewJS blocks
.bento-card-title	Header stripe inside each DataviewJS card
.concept-cloud / .concept-tag	Wrapping flex container and link tags for word clouds

Responsive breakpoints at 800px collapse the stats grid to 2 columns and the nav row to 1 column.

---

Updating nav links

The Topics and Key Concepts sections in the nav row are static — edit them directly in dashboard.md. Everything else (stats, word clouds, tables) is live and updates automatically when wiki pages change.

---

Troubleshooting

Symptom	Fix
Counts show 0 or null	Check that Dataview is installed and JavaScript queries are enabled
Inline `$= ...` renders as raw text	Enable Inline JavaScript Queries in Dataview settings
Cards render as plain callouts	Confirm the CSS snippet is enabled in Settings → Appearance
Word clouds don't navigate on click	Expected in source/edit mode; open the note in Reading view
Word clouds don't show as a word cloud	Based on source count, multiple sources for a single concept/topic affects the visualization
Properties panel still visible	Confirm cssclasses: [dashboard] is in the note's frontmatter
